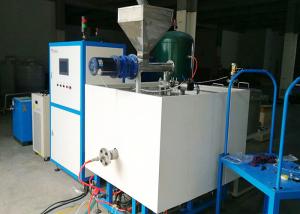

Auto Feeding Graphene Exfoliation Equipment 4 / 1.5kW Magnetrons 9kW Microwave

Name: Auto Feeding Graphene Exfoliation Equipment 4 15kW Magnetrons 9kW Microwave
Brand: Huaemw
Price: 1 USD

Brand Name : Huaemw

Model Number : HY-PH9010

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Delivery Time : 1~12weeks

Name : Automatic Graphene Producing Furnace

Heating Source : Microwave

Working Temperature : 0~950°C

Microwave Leakage Prevention : <2mW/cm2

Temperature Measurement Method : thermocouple

Warranty : 1 year

Contact Now

Auto Feeding Graphene Exfoliation Equipment 4 / 1,5kW Magnetrons 9kW Microwave

Product Features

HY-PH9010 is suitable for durabel Exfoliation of graphite oxide since loading and unloading is fully automatic.

HY-PH9010 uses 6 magnetrons with 1,5kW power to generate microwave while the total microwave output power is 0,1 to 8.4kW continuously adjustable.

HY-PH9010 uses our innnovative quartz tube which is 200mm in diameter 600mm in length for industrial grade mass production.

The continuous working temp. is under 1000 degrees.

Applications

HY-PH9010 is designed for industrial mass Exfoliation of high-quality graphene with a producing capacity of 10~50kg per day.

Technical Parameters

Parameters		HY-PH9010
Power	Voltage	380V±10V, 50Hz, three phase
Power	Rated Power	20KW
Microwave System	Microwave Output Power	0.10~8.40KW continuously adjustable
	Microwave Frequency	2.45GHz
	Microwave Leakage Prevention	microwave leakage intensity<2mW/cm²
Temperature Control System	Temperature Measurement Method	thermocouple
	Temperature Measurement Range	0~1300°C
	Temperature Control Precision	±0.1%
Control System	Auto, Manual and Isothermal Controlling Mode, PLC+Touch Screen	40 segments of programmable technical parameters, data storage and export, real-time curve data display, dynamic data display
